Production : Uses oneself country production the high grade proprietary intellectual property rights semiconductor sensor, Its reaction time is short, the service life is long;

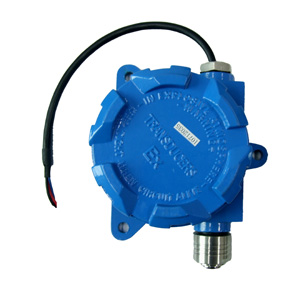

           Explosion-proof shell, stand wear and tear;
           Has the high grade reliability, the accuracy and the anti-jamming;
           Has the high quality performance price ratio.
           Purpose:    metallurgy, LPG, electric power, boiler room, laboratory, hotel and so on.
           Main technical information:
           Detection principle:Semiconductor principle
           Target gas:  Combustible gas
           Work voltage:12~24V DC
           Signal output:simulation signal output model(often open,220V 1A)
           Alarm point establishment:10%LEL (Before leaving the factory, according to the customer request position)
           Most power :1W
           Connecting cable:Four line(4x0.75) Two power lines and two simulation signal output lines)
           Operating temperature:-10~60Celsius system

    Resume humidity:10%-95%RH(Non-condensation)
           Detection accuracy:plus or minus10%
           Reaction time:<30s
           Explosion grading:Ex d IIC T4
           Defend grading:IP65
           Life:3years
           Dimension:Shell diameter105mm
           Weight:1000g
           Brand:JIHUA
           Manufacturer:Beijing
           Size:CGD-I-KEX
